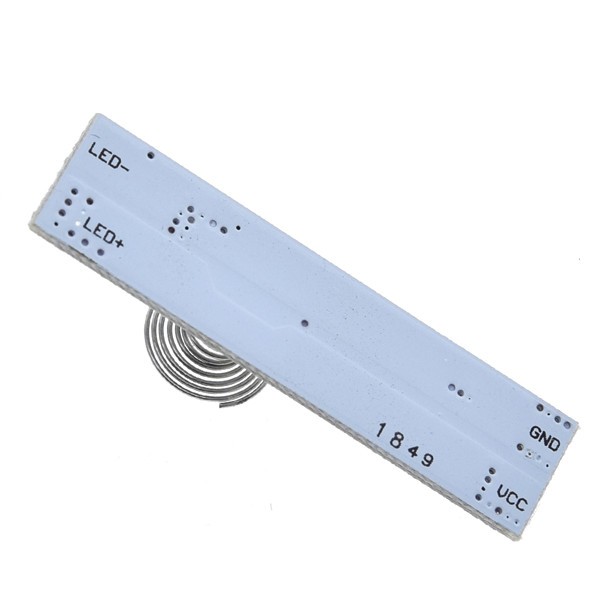

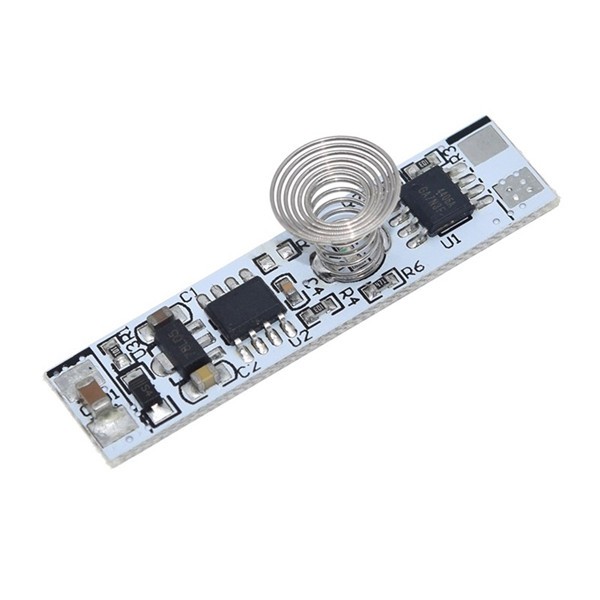

9V-24V 30W 3A LED Dimming Control Lamps Touch Switch Capacitive Sensor Module

1. Input voltage: 9v-24v

2. Output voltage: 9v-24v

3. Load power: 30W

4. Load current: 3A

5. Standby current: 10mA

6. Standby power consumption: 0.1w

7. Operating temperature: -20 â„ƒ~ 65 â„ƒ

8. Type: Touch_S (L40W10)

9. Size: 40mm * 10mm * 1.2mm

(Note: test conditions Vin = 12V)

Instructions for use:

Module size 40mm * 10 * 1.2 (mm), for width> = 10mm of the hard light or other lamps;

Using a wide voltage work program, the input voltage 9V to 24V can be,

Note that the output load voltage is approximately equal to the input voltage;

Module anti-interference and self-adaptability is better, widely used in civilian hard-light type control

The status of this version LED is always on.

This series is a four-in-one version of the model,

The default factory setting is one-way dimming
