Description
Features:

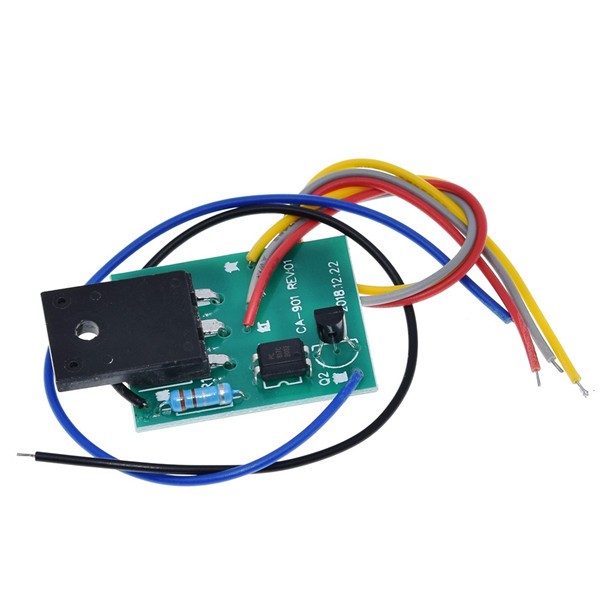

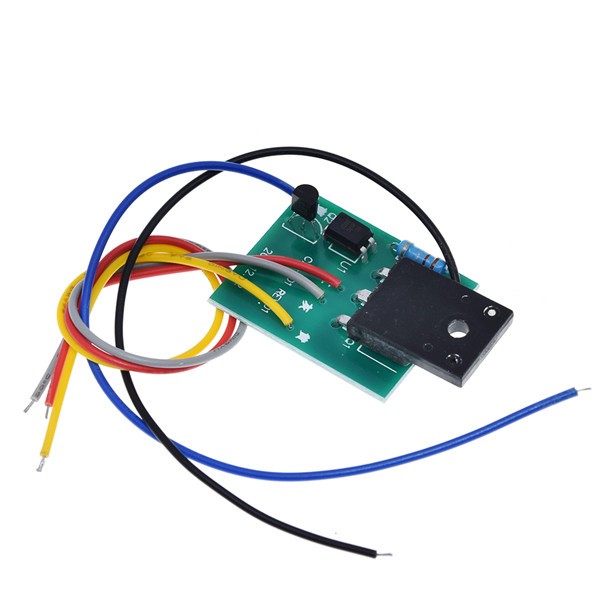

This is a high-performance, low power, small size, wide voltage range, easy to install. Suitable for flyback output voltage of 12v, 24v and LCD TV power supply, the module
used in 46-inch LCD TV, LCD power failure or high-power switching power supply fast maintenance replacement.
DC sampling and TL431 regulator feedback, so that it has a good regulator performance.
This module uses 12V 24V selective output, only need to connect the corresponding pad, you can output 12V or 24V.
Rationalized design, easy installation, simply according to the diagram, according to the required output power to connect the corresponding pad on it (power supply module factory 24V).
Specification:
Input voltage: 220V
Output voltage: 12V/24V
Dimensions: 2.7x4.3cm/1.06x1.69inch
