Description

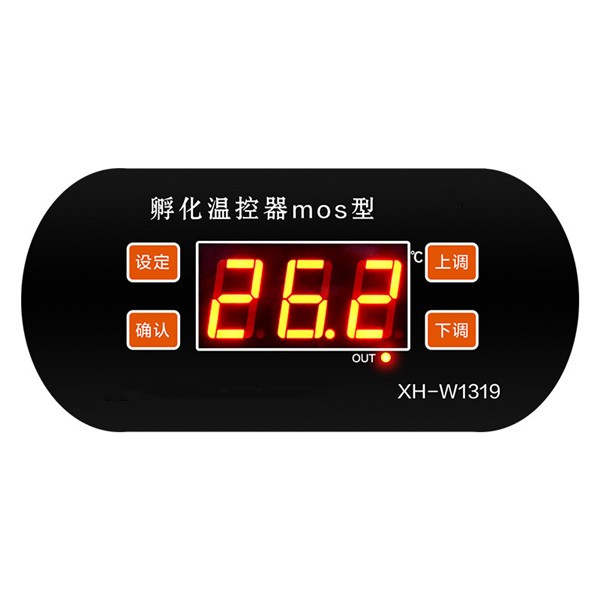

| Title: | W1319 Digital Thermostat Controller MOS Heating Temperature Control 0.1 Degree | ||
| Temperature Range: | 0~110°C | Temperature Control Range: | 20~39.5°C |
| Temperature Control Accuracy: | ±0.1 °C | Temperature Probe: | 1M |

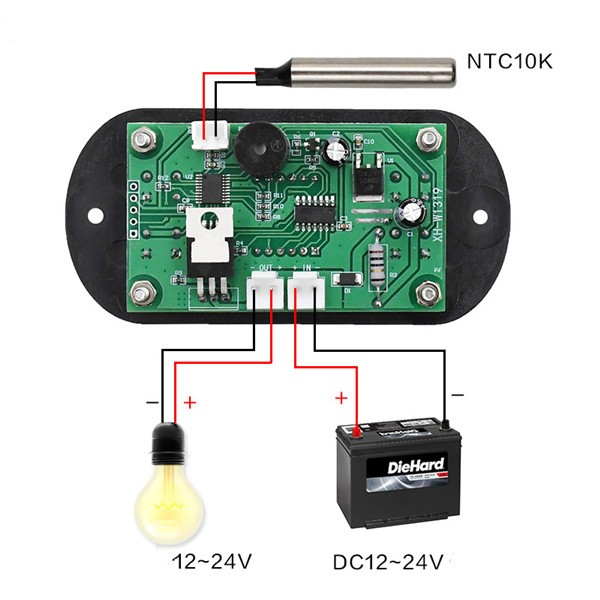

| Supply Voltage: | DC12~24V | Output Type: | MOS Tube Direct Output |
| Output Power: | MAX 10A | Size: | 100*48*28mm |
| Embedded Hole: | 71*41mm | Wire Length: | 25cm |
| Weight: | 45g | ||
| Code: |
P0 Hysteresis: setting range 0.1~30°C, factory setting 0.2°C P1 Setting upper limit: setting range up to 110 °C, factory setting 39.5 °C P2 Setting lower limit: setting range is at least -50 °C, factory setting is 20 °C P3 Temperature correction: setting range -10 °C + 10 °C, factory setting 0 °C P4 High temperature alarm: setting range -50 °C~110 °C/ON, factory setting 42 °C P5 High temperature alarm: setting range -50 °C~110 °C/ON, factory setting 0 °C |
||

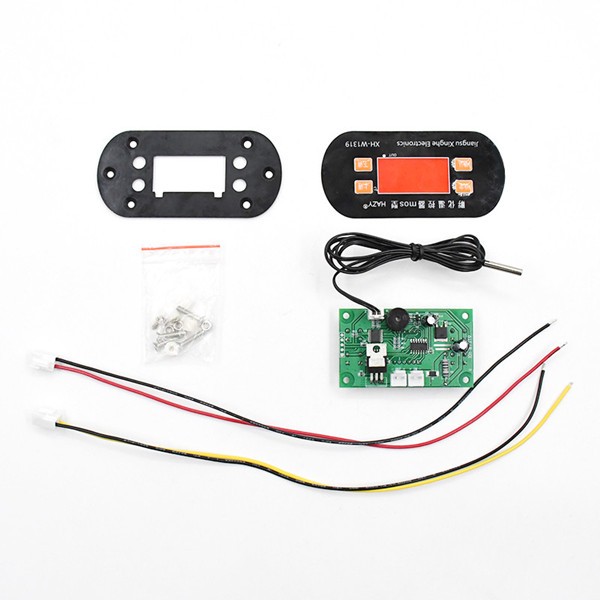

| Package: |
1* Digital Temperature Controller |
||
