Description

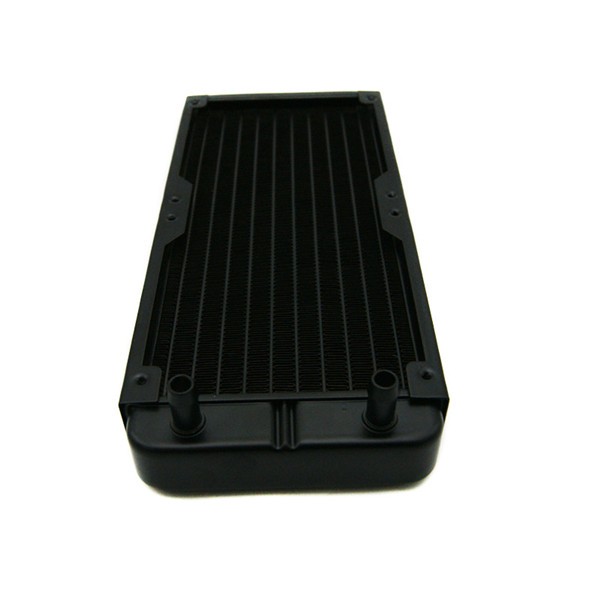

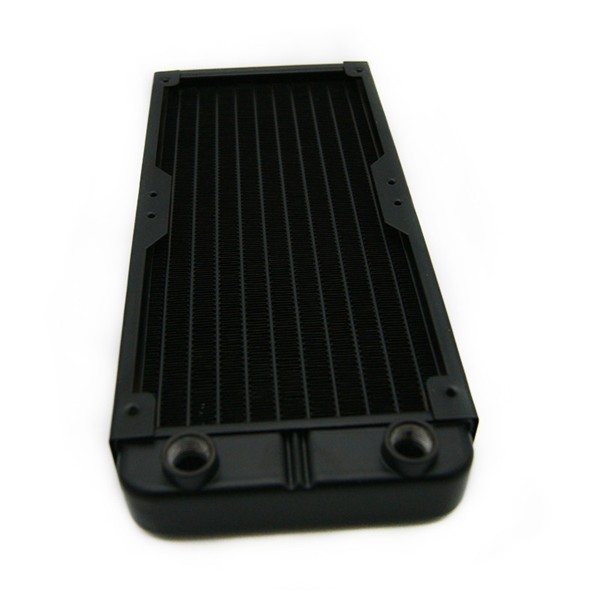

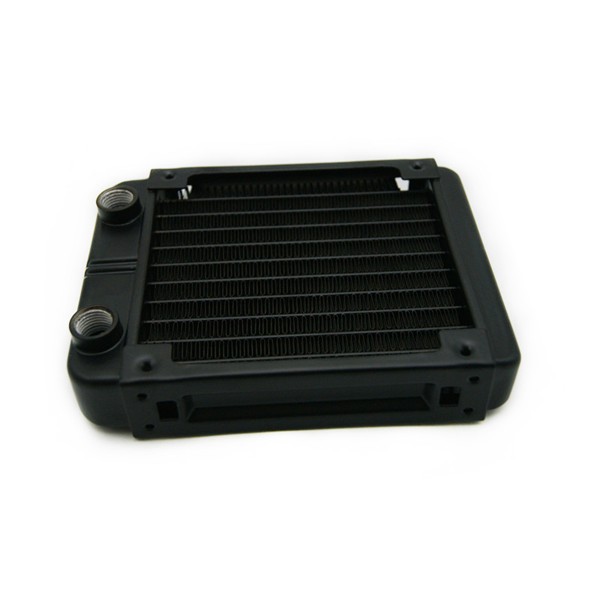

Heat row are aluminum material, using a 4.5mm wave height of the U-shaped heat tape, high density S-type cooling fin arrangement, this design effectively increases the cooling area, improve the efficiency of heat exchange. Heat row of 60mm,80mm,90mm,120mm, 240mm specifications, the user can heat their machines from the line to select the appropriate heat exchanger row.
Side spray treatment, smooth and has a texture, it is luxurious, elegant, black design gives a more mature feel. Forming a welding technology, a single row of cooling, 18 cycles waterway, Sheung Shui interior design of the watertight compartment in the middle device to prevent string of water, your hardware security more secure.
Product Type: CPU-60X
Material : Aluminum
Connection: G1/4 thread fitting or 7-8mm(60,80,90 Radiator) 9.5-10mm(120,240 radiator) tube optional
Fitting manner 2: D9.5mm straight mouth pagoda
Surface treatment : spray treatment
Water Channels: 6-10pcs
Product technology : Use advanced 4.5mm U type heat tape, single drainage channels effectively increase the cooling area, the unique welding technology, greatly improving the thermal performance.
Application : For PC water cooling systems or Other electronic equipment and various industries chip cooling
