Description

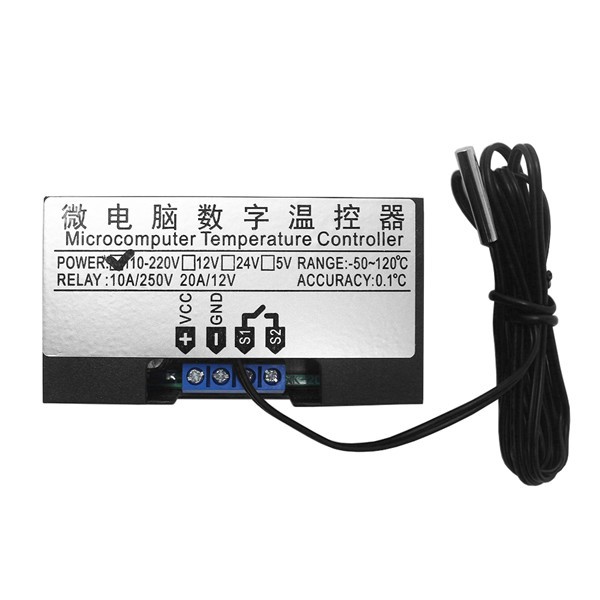

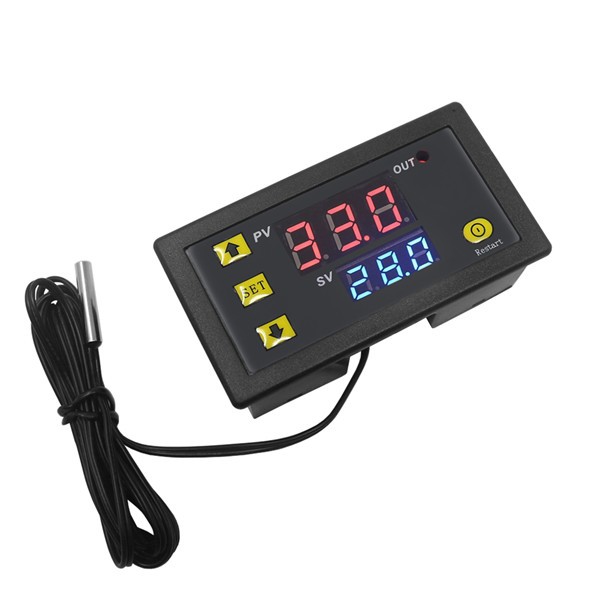

- Mini temperature controller.
- With clear LED display for better readability.
- Wide temperature measuring range.
- Heating or cooling control.
- All parameters setting can be saved after short circuit.
- Relay output.
- High Control precision 0.1 centigrade
- Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.
Specifications:
- Power Supply:12V DC, 24V DC ,110V-220VAC
- Temperature Control Range:-55℃-120℃
- Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
- Color of Displaying: red/blue
- Measurement accuracy: ±0.1°C
- Control accuracy: 0.1°C
- Sensor: NTC10K Waterproof sensor
- Output: Relay Contact Capacity 10A 220V , 20A 12V , 20A 24V
- Environmental requirements: -10-60°C , humidity 20%-85%RH
- Dimension:79mm *43mm*26mm
- Cutting Size:73mm*39mm
