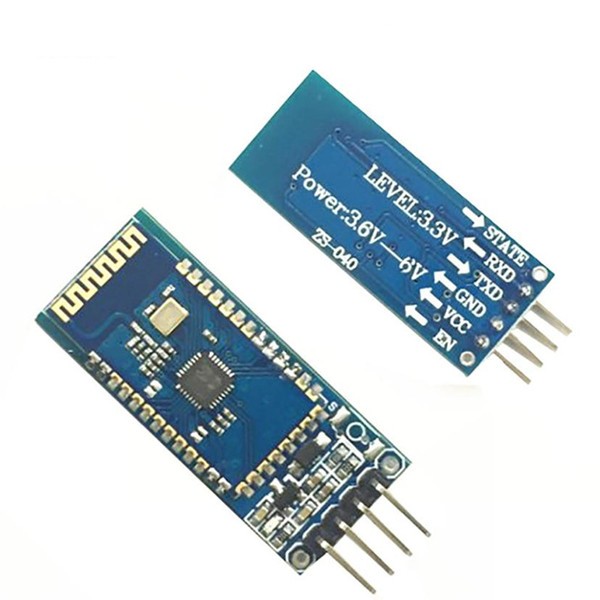

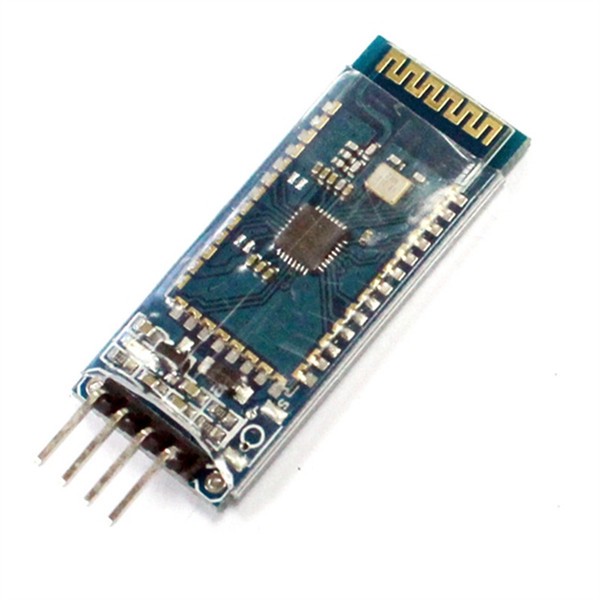

Description
Physical characteristics:
Operating Frequency Band : 2.4GHz -2.48GHz unlicensed ISM band
Bluetooth Specification :V2.1+EDR
Output Power Class : Class 2
Operating Voltage : 3.3V
Host Interface : UART
Dimension: 27mm (L) x 13 (W) mm x 2mm (H)
Electrical characteristics:
Absolute Maximum Ratings
Storage temperature: -40°C-+150°C
Supply voltage: VBAT: -0.4V -5.6V
Other terminal voltages: VSS-0.4V - VDD+0.4V
Recommended Operating Conditions
Operating temperature range: -40°C - +150°C
Guaranteed RF performance range(a): -40°C - +150°C
Supply voltage: VBAT: 2.2V-4.2V(b)
